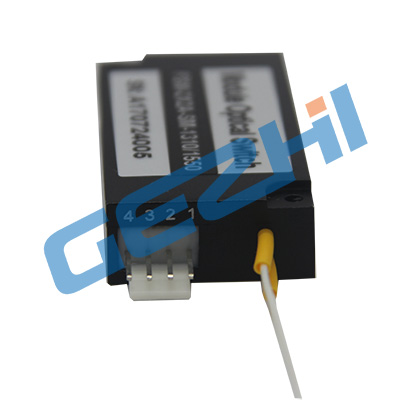

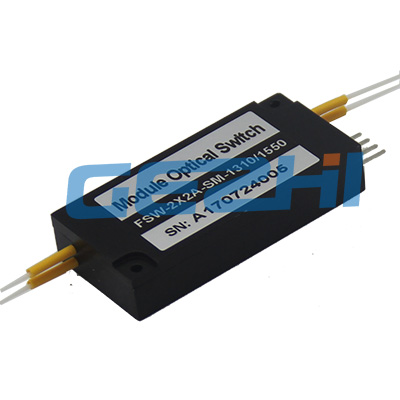

2x2A Mechanical Optic Switch




Description

GEZHI Photonics’ 2×2 A type Mechanical Fiber Optic Switch (2X2A Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

Compact design, Miniature size

Short switching time

Bi-directionalLow optical distortions

Low cross talk, Low Insertion Loss

Wide operating wavelength Range

Applications

R&D in Laboratory

System monitoring

Metropolitan Area Network

Network protection and restoration

Instrumentation, testing, and measurement

Technical Paremeter

Parameters

Unit

GZ-FSW-2×2A

Wavelength Range

nm

12601650

Operating Wavelength

nm

1310/1550

Insertion Loss

dB

Typ:0.8  Max:1.0

Return Loss

dB

≥50

Crosstalk

dB

≥60

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power Supply

v

3.0 or 5.0

Lifetime

times

≥107

Switch Time

ms

≤8

Transmission Power

mW

≤500

Operating Temperature

-20+70

Storage Temperature

-40+85

Weight

g

25

Dimension

mm

(L)55.0×(W)26.0×(H)10.0



2×2A Optical Switch – Pin Configurations

Type

State

Optical Route

Electric Drive

Status Sensor

2×2A

Pin 1

Pin 2

Pin 3-4

Non-latching

A

P1-P3,P2-P4

V+

GND

Open

B

P1-P4,P2-P3

Close

2×2A Optical Switch – Optical Route

State A

State B

2×2A Optical Switch - Micro Optical Switch

2×2A Optical Switch - Micro Optical Switch

Dimensions

Electric

Specifications

Voltage

Current

Resistance

5V   non-latching

4.5~5.5 V

25~31 mA

178 Ω

3V   non-latching

2.7~3.3 V

42~51 mA

65 Ω

Ordering Information

X

XX

X

X

X

XX

X

XX

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM

M=MM

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

X=Others

3=3V

5=5V

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

1=1m

2=1.5m

X=Others

0=None

1=FC/PC

2=FC/APC

3=SC/PC

4=SC/APC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

X=Others
