BASIC KNOWLEDGE OF OPTICAL SWITCH

What Is Optical Switch

The most direct understanding of optical switch is a device(mechanical, opto-mechanical, or electronic types) used to open or close an optical circuit. In a network, we usually require protection switching (to complete or break an optical path), where key attributes must operate reliably after a long period in one position, system monitoring, and diagnosis commonly feature these devises. An optical switch has one or more inputs ports and two or more output ports that we usually call 1xN or NxN optical switch.

Types of Optical Switch

According to the differences of fabrication process and technologies, optical switch can be divided into mechanical switch, MEMS(Microelectromechanical System) switch and other switches. The first two types are the most widely used products in the market nowadays. In addition, thermo-optic switch, electro-optic switch and acousto-optic optical switch are also used in some specific applications. And today, we will mainly introduce the first two types here.

Opto-mechanical switch may be said as the oldest type of optical switch. But it is the most widely deployed at the time. Due to its working principle, it is relatively slow with switching times in the 10-100 ms range. Nevertheless, they can achieve excellent reliability, insertion loss, and crosstalk. In general, opto-mechanical optical switches collimate beam optics from each input and output fiber and move these collimated beams around inside the device so that allows the distance between the input and output fiber without deleterious effects and achieves lower optical loss.

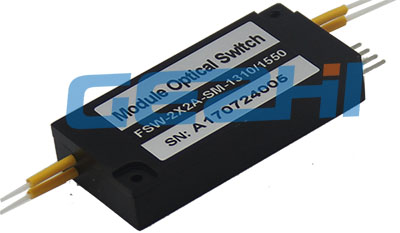

2x2A fiber switch3.jpg

Microelectromechanical systems (MEMS) optical switch has attracted wide attention because of their versatility. MEMS optical switch can be considered as a subcategory of opto-mechanical switches. But due to the difference of fabrication processes and its unique miniature nature, its characteristics, performance and reliability concerns are different with the opto-mechanical switch. The most obvious point is the opto-mechanical switch has more bulk compared to other alternatives, but the MEMS switch overcomes this.

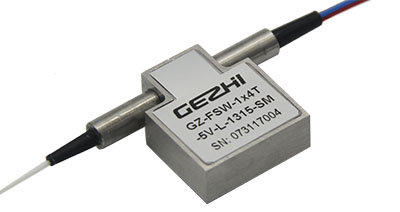

1x4T optical switch3.jpg

How Does Optical Switch Work
Optical switch is a technology that operates on fiber optic circuit to work similar to traditional electrical switches. The optical switch we mainly mentioned here is operated by mechanical means which physically move fiber or other bulk optic elements. For example, the opto-mechanical switch redirected an optical signal by moving fiber by means of a mechanical device are typically stepper motor driven. It move a mirror(prisms, or directional couplers) that directs the light from the input to the desired output.

optomechanical switch-working

Applications of Optical Switch
Optical switch is a key component in nowadays optical network. It is generally used for a variety of applications such as provisioning of light paths, protection switching and as the elements that allow high speed packet switched networks. Additionally, it is also very useful in optical fiber, components or systems testing and measurement, as well as applications in multi-point fiber sensor systems.

 remote network monitoring
