1×2 Fiber Optic Switch

1×2 Fiber Optic Switch

Overview

The single 1×2 optical switch is a standard 1×2 configuration with 3 fibers and 2 states.

Optical Connectivity

The following diagrams show the optical connections for the different states. The numbers identify the fiber endpoints. In state A, fibers 1 and 2 are connected. In state B, fibers 1 and 3 are connected.

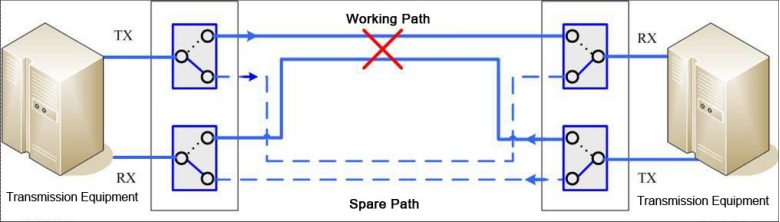

1×2 Optical Switch have function on Optical network protection/Restoration, Usually applications on the recovery when network have problem.

When the fiber break or other transmission equipment have problems, Then it’s can change from main light path to spare one,to ensure the work of transmission.


GEZHI 1×2 Micro Fiber optic switch connects optical channels by redirecting an incoming optical signal into a selected output fibre. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal. The Switch offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MS fibreoptic switches are true switching solution for optical networking applications.

For more item details:

http://www.pm-fiber.com/index.php/product-detail/1×2-optical-switch/

Email:  sales@gezhiphotonics.com
