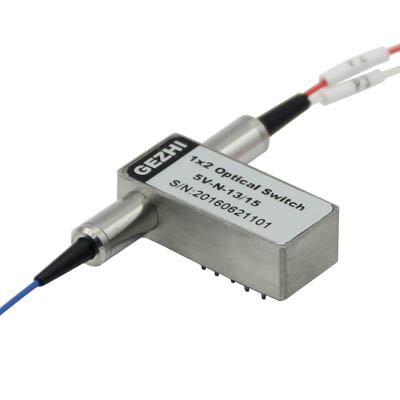

1×2 Optical Mechanical Optical Switches
Description
GEZHI Photonics 1×2 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.
GEZHI Photonics’ 1×2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features ♦ Low Insertion loss ♦ Wide Wavelength Range ♦ Low Crosstalk ♦ High Stability, High Reliability ♦ Epoxy-free on Optical Path ♦ Latching and Non-latching |
Applications ♦ Channel Blocking ♦ Configurable Add/Drop ♦ System Monitoring ♦ Instrumentation |
Technical Paremeter
|
Parameters |
GZ-FSW-1×2 |
||
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260~1650 |
|
Operating Wavelength |
nm |
850/1300 |
1310/1490/1550/1625/1650 |
|
Insertion Loss |
dB |
Typ:0.8 Max:1.2 |
Typ:0.5 Max:1.0 |
|
Return Loss |
dB |
MM≥30 SM≥50 |
|
|
Crosstalk |
dB |
MM≥35 SM≥55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
TDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Power Supply |
V |
3.0 or 5.0 |
|
|
Lifetime |
Time |
≥107 |
|
|
Switch Time |
ms |
≤8 |
|
|
Transmission Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-20~+80 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Weight |
g |
16 |
|
|
Dimension |
mm |
(L)27×(W)12.0×(H)8.2 |
|
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Pins
|
Control Model |
Optical Path |
Electric Drive |
Status Sensor |
||||||
|
1×2 |
1 |
5 |
6 |
10 |
2-3 |
3-4 |
7-8 |
8-9 |
|
|
Latching |
P1-P2 |
— |
— |
GND |
V+ |
Close |
Open |
Open |
Close |
|
P1-P3 |
V+ |
GND |
— |
— |
Open |
Close |
Close |
Open |
|
|
Non-latching |
P1-P2 |
— |
— |
— |
— |
Close |
Open |
Open |
Close |
|
P1-P3 |
V+ |
— |
— |
GND |
Open |
Close |
Close |
Open |
|
Optical Route
|
Status One |
Status Two |
|
|
|
Electric
|
Specifications |
Voltage |
Current |
Resistance |
|
5V Latching |
4.5~5.5 |
≥50mA |
125Ω |
|
5V Non-latching |
4.5~5.5 |
≥40mA |
175Ω |
|
3V Latching |
2.7~3.3 |
≥70mA |
50Ω |
|
3V Non-latching |
2.7~3.3 |
≥50mA |
70Ω |
Ordering Information
|
Mode |
Wavelength |
Voltage Type |
Control Model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
|
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others |
