WDM fused Coupler – 980, 1064 nM – 2 x 2
Features High Isolation Low Insertion Loss High Reliability |
Applications Fiber Laser |
Technical Paremeter
Parameter |
Value |
||
Operating wavelength (nm) |
980/1030 |
980/1064 |
|
Operating bandwidth (nm) |
±5 |
||
Insertion loss (dB) |
≤0.4 |
≤0.4 |
|
Isolation (dB) |
≥13 |
≥13 |
|
PDL(dB) |
≤0.15 |
||
Directivity (dB) |
≥55 |
||
Operating temperature (℃) |
-40 ~ +85 |
||
Fiber |
HI1060FLEX or HI1060 |
||
Configuration |
1×2 or 2×2 |
||
Pigtail |
250um bare fiber |
900um loose tube |
|
Package Dimension(mm) |
Ф3.0×60 |
Ф3.0×60 |

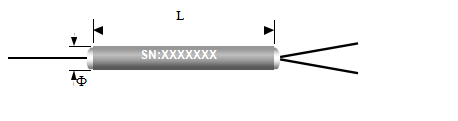

Dimensions:
Ordering Information
WDM |
Port |
Wavelength |
Pigtail |
Fiber |
Length |
Connector |
Package |
1×2 |
980/1030 |
0=250um bare fiber |
1=HI1060FLEX |
0.8=0.8m |
00=none |
3×60 |
|
2×2 |
980/1064 |
1=900um loose tube |
7=HI1060 |
S=Specify |
FC,SC,LC,ST |
||
2=2mm loose tube |
MU/UPC,APC |
||||||
3=3mm loose tube |
