WDM 3 Port Filter – 1064 , 980 nM

Features

Low Insertion Loss & High Isolation

High Stability and Reliability

Applications

Fiber Amplifier

Fiber Laser

Fiber Instrument



Technical Paremeter

Parameter

1064/980

1064/1030

1550/1064

Pass wavelength (nm)

960-990 (or 1020-1080)

1064+/-2.5

1500~1600

Reflection Wavelength (nm)

1020-1080 (or 960-990)

1030+/-10

1040~1064

Pass insertion Loss (dB)

≤0.8

≤0.8

≤0.8

Reflection Insertion Loss (dB)

≤0.6

≤0.6

≤0.6

Pass Channel Isolation (dB)

≥25

≥25

≥25

Reflection Isolation (dB)

≥13

≥13

≥13

Channel Flatness (dB)

≤0.3

≤0.3

≤0.3

Directivity (dB)

≥55

Return Loss (dB)

≥50

PDL (dB)

≤0.1

Wavelength Thermal Stability (nm/(°C))

≤0.003

Insertion Loss Thermal Stability(dB/)

≤0.005

Power Handling (mW)

≤300

Fiber Type

HI1060

HI1060

P: SMF-28 C/R: HI1060

Operating Temperature (°C)

0 ~ +70

Storage Temperature(°C)

-40 ~ +85

Dimensions (mm)

φ5.5×L35

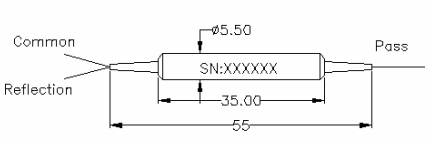

Dimensions:


Ordering Information

FWDM

Wavelength

Pigtail Type

Fiber Type

Length

Connector

1064T/1030R

250=250um bare

1=SMF-28e

1= 1m

NE=None

980T/1064R

fiber

4=HI1060

FA=FC/APC

980R/1064T

900=900um loose

FC=FC/UPC

1550T/1064R

tube

SA=SC/APC

3000=3mm loose

SC=SC/UPC

tube

LC=LC/UPC

XX=Other
