Transmission Platform (Rackmount)

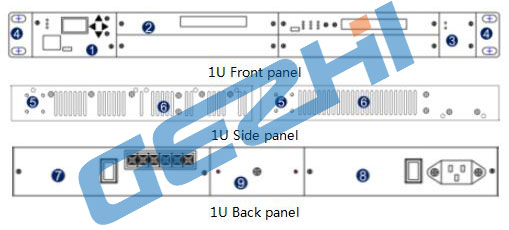

1. 1U Transmission Plateform(Rackmount)


Description

Main control card slot

Business card slot,maximum support four business cards, our business  cards  all can     be mixed interpolation and hot swappable

Fan slot,Support for fan hot swap and independent replacement

Scalable lug   Lug instillation position   Side vent

Power 1 slot,can plug in AC power supply or DC power supply, support hot swap

Power 2 slot,can plug in AC power supply or DC power supply, support hot swap

Grounding screw

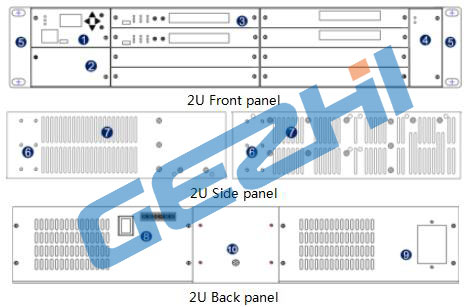

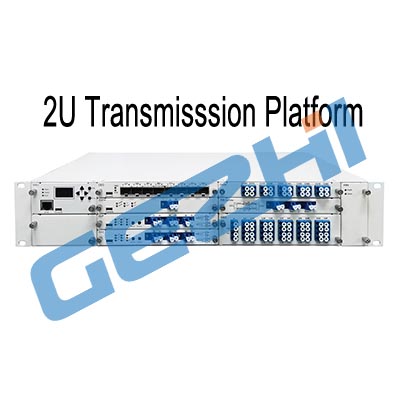

2.  2U Transmission Plateform(Rackmount)


Description:

Main control card slot

Expansion slot,can plug in eight Ethernet switch cards or other cards

Business card slot,maximum support eight business cards,all our business card can be mixed interpolation,hot swappable

Fan slot,Support for fan hot swap and independent replacement

Scalable lug   Lug instillation position   Side vent

Power 1 slot,can plug in AC power supply or DC power supply, support hot swap

Power 2 slot,can plug in AC power supply or DC power supply, support hot swap

Grounding screw

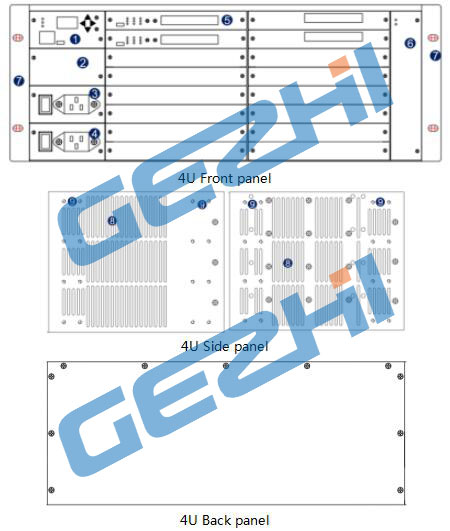

3.  4U Transmission Plateform(Rackmount)


Explain

Main control card slot

Expansion slot,can plug in eight Ethernet switch cards or other cards

Power 1 slot,can plug in AC power supply or DC power supply, support hot swap

Power 2 slot,can plug in AC power supply or DC power supply, support hot swap

Business card slot,maximum support sixteen business cards,all our business card can be mixed interpolation,hot swappable

Fan slot,Support for fan hot swap and independent replacement

Scalable lug    Side vent    Lug instillation position

5.  Transmission Plateform(Rackmount) components:

⑴ Main control card


Main control card panel

Equipment status indicatorPWR1PWR2RUN

HD dual color LCD display screen

Operation keys

Ethernet communication interface

Micro USB equipment upgrade interface

Communication control

♦    Communication management card using LINUX+ARM9 control design

♦    Business card using UCOS2+ARM7 control design

♦    Communication management card and business card  work independently

Equipment management

♦    Equipment state,card performance can be visible completely

♦    Card parameters can be set by panel

♦    Alarm audio output,can self-actuated open and close

♦    Temperature control fan,can self-actuated open and close

♦    Supports various network management channels of 2M,in-hand and out-hand

♦    Supports SNMP, Telnet, TCP/IP, Web

 ⑵ Power and Fan


1.3 Machine frame correlation parameter

Parameters

Unit

Specifications

Environmental

parameter

Working  temperature

-10~ 60

Storage  temperature

-20~ 75

Relative  temperature

5% ~   95%  No condensation

size

1U

mm

482.6W×300D×44.5H

2U

mm

482.6W×300D×86H

4U

mm

482.6W×220D×176H

Power   Supply

AC

V

85~264,50~60hz

DC

V

36~72

Consumption

1U

W

50Max

2U

W

100Max

4U

W

200Max

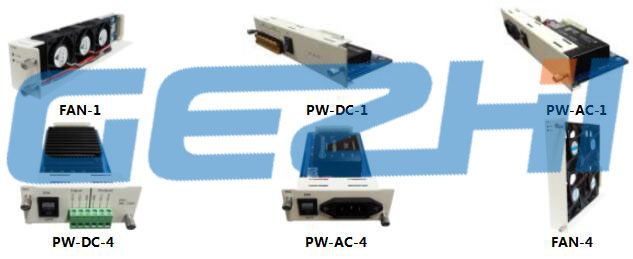

 1.4 Machine frame component ordering Information

TN10

1U Transmission Platform(Rackmount)

TN20

2U Transmission Platform(Rackmount)

TN40

4U Transmission Platform(Rackmount)

PW-AC-1

1U 85V~264VAC Power   card

PW-DC-1

1U 36~72VDC Power   card

PW-AC-2

2U 85V~264VAC Power   card

PW-DC-2

2U 36~72VDC Power   card

PW-AC-4

4U 85V~264VAC Power   card

PW-DC-4

4U 36~72VDC Power   card

CMU-E

Main control card,Support for LCD、10/100M Ethernet interface

CMU-ES

Main control card,Support for LCD、10/100M Ethernet interface、SFP

FAN-1

1U Fan card

FAN-2

1U Fan card

FAN-4

4U Fan car
