RC80 PM Fiber Filter Coupler 1×2
|
Features High Extinction Ratio Low Insertion Loss High Reliability |
Applications Fiber Sensor Communication System |
Technical Paremeter
|
Type Parameter |
1 x 2 |
2 x 2 |
|
|
Wavelength (nm) |
1550 |
1550 |
|
|
Operating Bandwidth (nm) |
±30 |
±30 |
|
|
Excess Loss (dB) |
≤1.0 |
≤1.2 |
|
|
Uniformity (dB) |
≤0.6 |
≤0.8 |
|
|
Coupling Ratio (%) |
1/99~50/50 |
1/99~50/50 |
|
|
Extinction Ratio (dB) |
≥20 |
≥20 |
|
|
Return loss (dB) |
≥50 |
||
|
Power handling (mW) |
≤500 |
||
|
Fiber Type |
Tap port 2 |
RC PM1550 or RC SM1550 |
|
|
Port 1 & 3 |
RC PM1550 |
||
|
Operating temperature (℃) |
-5~+70 |
||
|
Storage temperature (℃) |
-40 ~ +80 |
||
|
Dimensions (mm) |
φ5.5×L35 |
||

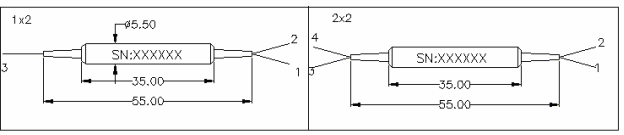

Dimensions:
Ordering Information
|
PMFC |
Type |
Wavelength |
Coupling Ratio |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
|
1×2 |
1550 |
1/99 |
2=Both Axis |
165=165um |
6=RC |
0.8= |
|
|
2×2 |
2/98 |
Working |
bare fiber |
PM1550 |
0.8m |
||
|
3/97 |
|||||||
|
…… |
|||||||
|
50/50 |
