Quad 1×1 Optical Switches
Description
GEZHI Photonics’ Quad 1×1 Mechanical Fiber Optic Switch (Quad 1×1 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features Compact design, Miniature size Short switching time Bi-directionalLow optical distortions Low cross talk, Low Insertion Loss Wide operating wavelength Range |
Applications R&D in Laboratory System monitoring Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
Technical Paremeter
|
Model |
Quad 1x1 |
||
|
Operating wavelength |
nm |
850±40/1300±40 |
1260～1620 |
|
wavelength |
nm |
850&1300 |
1310&1550 |
|
Insertion loss |
dB |
Typ:0.7 Max:1.0 |
|
|
Return loss |
dB |
MM≥30 SM≥50 |
|
|
Cross talk |
dB |
MM≥35 SM≥55 |
|
|
PDL |
dB |
≤0.05 |
|
|
WDL |
dB |
≤0.25 |
|
|
TDL |
dB |
≤0.25 |
|
|
Repeatability |
dB |
≤±0.02 |
|
|
Voltage |
v |
3.0 or 5.0 |
|
|
Operating life |
Time |
≥107 |
|
|
Switch time |
ms |
≤8 |
|
|
Power handling |
mW |
≤500 |
|
|
Operating temperature |
℃ |
-20～+70 |
|
|
Storage temperature |
℃ |
-40～+85 |
|
|
Fiber color |
P1、P1’:Black P2、P2’:Red P3、P3’:Blue P4、P4’:White |
||
|
Size |
mm |
27.0×12×8.2±0.2 |
|
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
|||
Pins
|
Type |
State |
Pin definition |
Power |
Condition monitoring |
||||||
|
Quad 1×1 |
1 |
5 |
6 |
10 |
2-3 |
3-4 |
7-8 |
8-9 |
||
|
Non-latching |
A |
X |
— |
— |
— |
— |
Close |
Open |
Open |
Close |
|
X |
||||||||||
|
B |
P1-P1’、P2-P2’ |
V+ |
— |
— |
GND |
Open |
Close |
Close |
Open |
|
|
P3-P3’、P4-P4’ |
||||||||||
|
Latching |
A |
X |
— |
— |
GND |
V+ |
Close |
Open |
Open |
Close |
|
X |
||||||||||
|
B |
P1-P1’、P2-P2’ |
V+ |
GND |
— |
— |
Open |
Close |
Close |
Open |
|
|
P3-P3’、P4-P4’ |
||||||||||

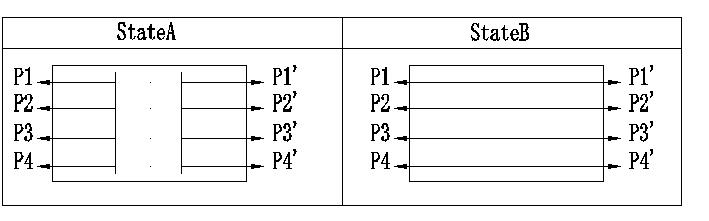

Optical Route

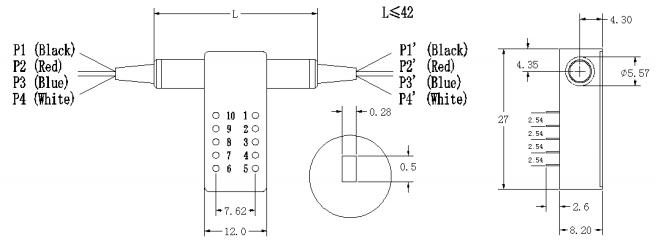

Demension:
