Polarization Insensitive Optical Isolator 1064nm, fiber length 1M

Features

High IsolationLow Insertion

Loss & Low PDL

High Stability and Reliability

Applications

Fiber Laser



Technical Paremeter

Parameter

Unit

Single Stage

Dual Stage

Grade

P

A

P

A

Operating Wavelength

nm

1064

Bandwidth

nm

±5

Peak Isolation

dB

40

38

55

52

Isolation at 23°C

dB

≥30

≥28

≥45

≥42

Typ. Insertion Loss (λc,23 (°C) all sop)

dB

1.4

1.5

2.3

2.5

Insertion Loss (λc,-5 ~ +50 (°C) all sop)

dB

≤1.8

≤2.0

≤3.2

≤3.4

PDL at 23°C

dB

≤0.15

≤0.15

≤0.15

≤0.15

Return Loss

dB

≥55/50

≥55/50

≥55/50

≥55/50

Power Handling

mW

≤300

Fiber Type

HI 1060

Operating Temperature

°C

-5~ +50

Storage Temperature

°C

-40 ~ +80

Dimensions

mm

φ5.5×L35

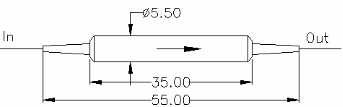

Dimensions:


Ordering Information

IS

Type

Grade

Wavelen gth

Pigtail Type

Fiber Type

Length

Connector

Package size

S= Single stage

D = Dual Stage

P A

1064

250=250um

bare fiber 900=900um

loose tube

4=HI1060

0.8=0.8

1= 1m

NE=None FA=FC/APC FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC

XX=Other

5.5×35
