Polarization Beam Splitter, Combiner – PBS ,PBC, 1064 nm

Features

Low Insertion Loss

High Extinction Ratio

High Stability and Reliability

Applications

Fiber Laser

Technical Paremeter

Type

Parameter

P

A

Wavelength (nm)

1064

Operating Bandwidth (nm)

±20

Typ. Insertion Loss (dB)

0.60

0.70

Insertion Loss (dB)

0.80

0.90

Extinction Ratio (dB)(only for PBS)

22

20

Directivity (dB)

50

Return loss (dB)

50

Power handling (mW)

≤300



Fiber Type

Port 1 &2

Panda Fiber

Port 3

HI1060 or PM panda fiber

Operating temperature ()

-5~+50

Storage temperature ()

-40 ~ +80

Dimensions (mm)

φ5.5×L35

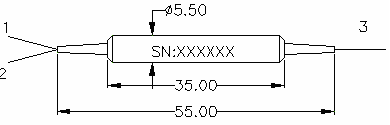

Dimensions:


Ordering Information

PBS PBC

Port

Grade

Wavelength

Pigtail Type

Fiber Type For Port 3

Length

Connector

1×2

P=P

grade A=A

grade

1064=1064nm

250=250um

bare fiber 900=900um

loose tube

2=HI1060

3=PM fiber,Slow axis align to Port 1

4=PM fiber, Slow axis align 45° to port 1

0.8=

0.8m

1=1m

NE=None FA=FC/APC FC=FC/UPC

SA=SC/APC SC=SC/UPC

XX=Other
