PM Optical Isolator – 980 nm – Fiber length 1 Meter
Description
The Polarization Maintaining Isolator (PM Isolator) is disigned to transmit positive light ,while blocking the reflected light from the terminal. The PM isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. it´s the critical device of polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications, EDFA, PM Isolator has ´slow axis working,fast axis blocked´ and ´both axis woring´ can be selected
|
Features High isolation and Extinction Ratio Low Insertion loss High stability and reliability |
Applications Fiber Amplifier Fiber sensor Fiber Laser |
Technical Paremeter
|
Parameter |
Value |
|
Center wavelength λc (nm) |
980 |
|
Bandwidth(nm) |
±10 |
|
Peak isolation (dB) |
32 |
|
Isolation at λc 23℃(dB) |
≥25 |
|
Typ.Insertion Loss at 23℃(dB) |
0.8 |
|
Insertion Loss at 23℃(dB) |
≤1.0 |
|
Extinction Ratio (dB) |
≥20 |
|
Return loss (Input/output) (dB) |
≥50/50 |
|
Power handling (mW) |
≤300 |
|
Fiber Type |
Panda fiber |
|
Operating temperature (℃) |
-5~+50 |
|
Storage temperature (℃) |
-20 ~ +75 |
|
Package(mm) |
118*32*32 |

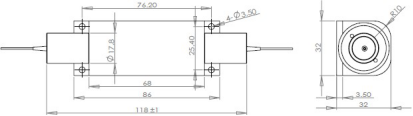

Dimensions:
Ordering Information
|
PMIS |
Wavelen gth |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
Connector |
Package size |
|
980 |
F=Fast Axis |
250=250um bare |
5=Panda |
0.8=0.8 |
NE=None |
118x32x32 |
|
|
blocked |
fiber |
fiber |
1= 1m |
FA=FC/APC |
|||
|
B=Both of axis |
900=900um loose |
FC=FC/UPC |
|||||
|
working |
tube |
SA=SC/APC |
|||||
|
3000=3000mm |
SC=SC/UPC |
||||||
|
loose tube |
LC=LC/UPC |
||||||
|
LA=LC/APC |
|||||||
|
XX=Other |
