PM Isolator 850nm

Description

The Polarization Maintaining Isolator (PM Isolator) is disigned to transmit positive light ,while blocking the reflected light from the terminal. The PM isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. it´s the critical device of polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications, EDFA, PM Isolator has ´slow axis working,fast axis blocked´ and ´both axis woring´ can be selected

Features

High Extinction Ratio

Low Insertion Loss

High Reliability

Applications

Fiber Amplifier

Fiber sensor

Fiber Laser



Technical Paremeter

Parameter

Value

Center wavelength λc (nm)

850

Bandwidth(nm)

±10

Peak isolation (dB)

32

Isolation at λc 23(dB)

≥25

Typ.Insertion Loss at 23(dB)

1.0

Insertion Loss at 23(dB)

≤1.2

Extinction Ratio (dB)

≥20

Return loss (Input/output) (dB)

≥50/50

Power handling (mW)

≤300

Fiber Type

Panda fiber

Operating temperature ()

-5~+50

Storage temperature ()

-20 ~ +75

Package(mm)

106x37x35

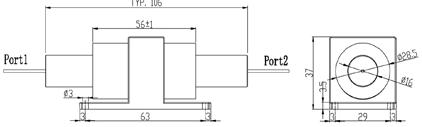

Dimensions:

PM Isolator 850nm.jpg

Ordering Information

PMIS

Wavelen gth

Axis Alignment

Pigtail Type

Fiber Type

Length

Connector

Package size

850

F=Fast Axis

250=250um bare

5=Panda

0.8=0.8

NE=None

106x37x

blocked

fiber

fiber

1= 1m

FA=FC/APC

35mm

B=Both of axis

900=900um loose

FC=FC/UPC

working

tube

SA=SC/APC

3000=3000mm

SC=SC/UPC

loose tube

LC=LC/UPC

LA=LC/APC

XX=Other
