PM Filter WDM – 1550, 1064nm, 980 , 1064, 1030 , 1064
|
Features Low Insertion Loss High Extinction Ratio & High Isolation High stability and reliability |
Applications Fiber Laser Fiber Amplifier Testing equipment |
Technical Paremeter
|
Type Parameter |
980/1064 |
1030/1064 |
1550/1064 |
|
|
Pass wavelength (nm) |
960~990 or 1020~1080 |
1064+/-2.5 |
1500~1600 |
|
|
Reflection wavelength (nm) |
1020~1080 or 960~990 |
1030+/-10 |
1040~1064 |
|
|
Pass Insertion Loss (dB) |
≤0.8 |
≤0.8 |
≤0.8 |
|
|
Reflection Insertion Loss (dB) |
≤0.6 |
≤0.6 |
≤0.6 |
|
|
Pass channel Isolation (dB) |
≥25 |
≥25 |
≥25 |
|
|
Reflection Isolation (dB) |
≥13 |
≥13 |
≥13 |
|
|
Channel Flatness (dB) |
≤0.3 |
|||
|
Extinction Ratio (dB) |
≥20 |
|||
|
Return Loss (dB) |
≥50 |
|||
|
Insertion loss thermal stability (dB/℃) |
≤0.005 |
|||
|
Power handling (CW,total) (mW) |
≤300 |
|||
|
Fiber Type |
Common& Pass port |
PM 980 |
PM 980 |
PM1550 |
|
Reflection Port |
PM 980 |
PM 980 |
PM980 |
|
|
Operating temperature (℃) |
0 ~ +50 |
|||
|
Storage temperature (℃) |
-40 ~ +85 |
|||
|
Dimensions (mm) |
φ5.5×L35 |
|||

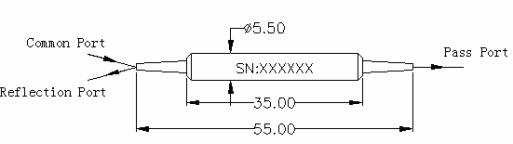

Dimensions:
Ordering Information
|
PMFWDM |
Port Type |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1×2 |
980T/1064R 980R/1064T |
250=250um bare fiber 900=900um loose tube |
5=Panda fiber |
0.8=0.8m 1=1m |
NE=None FA=FC/APC |
|
|
1550T/1064R |
3000=3mm loose tube |
FC=FC/UPC |
||||
|
1064T/1030R |
SA=SC/APC |
|||||
|
SC=SC/UPC |
||||||
|
XX=Other |
