PM Filter Coupler Module 2 x 2, 1064nM
|
Features Low Insertion Loss High Extinction Ratio &High Isolation High Stability and Reliability |
Applications Fiber Amplifier Fiber Optical Instrument Power Monitoring Fiber Sensor |
Technical Paremeter
|
Parameter |
1 x 2 |
2 x 2 |
||
|
Wavelength (nm) |
980,1064 |
980,1064 |
||
|
Operating Bandwidth (nm) |
±20 |
±20 |
||
|
Excess Loss (dB) |
≤0.8 |
≤1.2 |
||
|
Uniformity(only for 50/50) (dB) |
≤0.5 |
≤0.8 |
||
|
Tap Ratio (%) |
1±0.2%,2±0.4%,5±1%,10%,20%,30%,50% |
|||
|
Extinction Ratio(dB) |
Type B (Both of axis working) |
≥20 |
≥18 |
|
|
Type F (Fast axis blocked) |
≥22 |
≥20 |
||
|
Return Loss (dB) |
≥50 |
|||
|
Power Handling (mW) |
≤300 |
|||
|
Fiber Type |
Tap port 2(only for 1×2) |
HI 1060 or Panda fiber |
||
|
Tap port 2&4(only for 2×2) |
HI 1060 or Panda fiber |
|||
|
Port 1 & 3 |
Panda fiber |
|||
|
Operating Temperature (°C) |
-5~+70 |
|||
|
Storage Temperature(°C) |
-40 ~ +80 |
|||
|
Dimensions (mm) |
φ5.5 × L35 |
|||

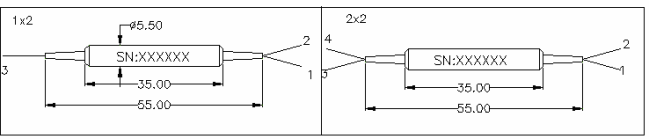

Dimensions:
Ordering Information
|
PMFC |
Type |
Wavelength |
Coupling Ratio |
Axis Alignment |
Pigtail Type |
Fiber Type For Port 2,4 |
Length |
Connector |
|
|
1×2 |
1064 |
1/99 |
F=Fast |
Axis |
250=250um |
4=HI1060 |
0.8= |
NE=None |
|
|
2×2 |
2/98 |
Blocked |
bare fiber |
5=Panda |
0.8m |
FA=FC/APC |
|||
|
3/97 |
B=Both |
Axis |
900=900um |
fiber |
FC=FC/UPC |
||||
|
…… |
Working |
loose tube |
SA=SC/APC |
||||||
|
50/50 |
3000=3mm |
SC=SC/UPC |
|||||||
|
loose tube |
XX=Other |
||||||||
