PM Fiber Gain Flattening Filter – PMGFF
|
Features Low Insertion Loss Flat Spectral Gain High Stability and reliability |
Applications PM EDFA |
Technical Paremeter
|
Parameter |
Value |
|
Wavelength Range C-band (nm) |
1528~1565 |
|
Insertion Loss (dB) |
≤0.6 |
|
Peak to Peak Error Function (dB) |
≤0.5 |
|
Extinction Ratio 23℃ (dB) |
≥23 |
|
Return loss (dB) |
≥50 |
|
Power handling (mW) |
500 |
|
Operating temperature (℃) |
-5~+70 |
|
Storage temperature (℃) |
-40 ~ +80 |
|
Dimensions (mm) |
φ5.5×L35 |

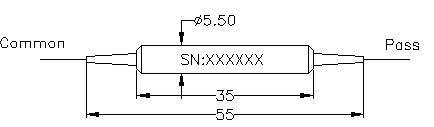

Dimensions:
Ordering Information
|
PMGFF |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1550 |
250=250um bare fiber |
5=Panda |
0.8= 0.8m |
NE=None |
|
|
900=900um loose tube |
fiber |
1=1m |
FA=FC/APC |
||
|
FC=FC/UPC |
|||||
|
SA=SC/APC |
|||||
|
SC=SC/UPC |
|||||
|
XX=Other |
