PM Fiber DWDM Filter – 1 x 2
Description
The PM Dense Wavelength Division Multiplexer is manufactured toTelcordia standard, based on environmentally stable thin film filter technology. The PM DWDM is designed mainly for signals adding/dropping on OADM, and Mux/Demux DWDM commucation system,with the advantage of high isolation, high extinction ration, low insertion loss, excellent environmental stability, and high power handling capability
|
Features Low Insertion Loss High Extinction Ratio & Isolation High stability and reliability |
Applications DWDM System Sensor Fiber optical testing equipment |
Technical Paremeter
|
Type Parameter |
100Ghz |
200Ghz |
|
|
Center wavelength CWL (nm) |
1529.55~1561.42 (ITU 20~ 60) |
||
|
Bandwidth @0.5dB (nm) |
≥0.2 |
≥0.5 |
|
|
Pass Band |
Insertion loss (dB) |
≤1.2 |
≤1.0 |
|
Isolation (dB) |
≥25 |
≥25 |
|
|
Reflection Band |
Insertion loss (dB) |
≤0.5 |
≤0.5 |
|
Isolation(dB) |
≥12 |
≥12 |
|
|
Extinction Ratio @ 23℃(dB) |
≥20 |
≥20 |
|
|
Directivity (dB) |
≥50 |
≥50 |
|
|
Return Loss (dB) |
≥50 |
≥50 |
|
|
Center Wavelength Stability (nm/℃) |
≤0.002 |
||
|
Thermal Stability (dB/℃) |
≤0.005 |
||
|
Power handling (mW) |
≤300 |
||
|
Operating temperature (℃) |
-5 ~ +70 |
||
|
Storage temperature (℃) |
-40 ~ +85 |
||
|
Fiber Type |
PM Panda fiber |
||
|
Dimensions (mm) |
φ5.5×L35 |
||

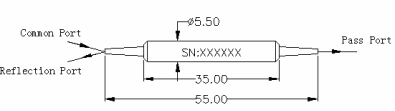

Dimensions:
Ordering Information
|
PMDWDM |
Channel Type |
Spacing |
ITU Channel |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1=1ch |
1=100Ghz |
21=21ch |
250=250um bare fiber |
5=Panda |
0.8=0.8 |
NE=None |
|
|
2=200Ghz |
22=22ch |
900=900um loose |
fiber |
m |
FA=FC/APC |
||
|
…… |
tube |
X=Spec |
FC=FC/UPC |
||||
|
60=60ch |
ify |
SA=SC/APC |
|||||
|
SC=SC/UPC |
|||||||
|
XX=Other |
