Optical Isolator Polarization Beam Combiner Splitter – IPBC IPBS 1064 nm

Features

Low Insertion Loss

High Extinction Ratio

High Stability and Reliability

Applications

Fiber Laser



Technical Paremeter

Parameter

Values

Isolator Stage

Single Stage

Center Wavelength (nm)

1064

Operating Wavelength Range (nm)

±5

Typ. Insertion Loss (dB)

1.8

Insertion Loss (dB)

≤2.1

Typ. Isolation (dB)

35

Isolation @23(dB)

≥25

Extinction Ratio (dB) (for Splitter only)

≥20

Directivity (dB)

≥50

Return Loss (dB)

≥50

Power Handling (W)

300



Fiber Type

Port 1 & 2

PM Panda Fiber

Port 3

HI 1060 or PM Panda Fiber

Operating Temperature (°C)

-5 ~ +50

Storage Temperature (°C)

-40 ~ +80

Dimensions (mm)

φ5.5 × L35

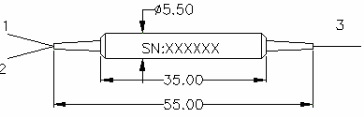

Dimensions:


Ordering Information

IPBS IPBC

Port

Wavelength

Stage

Pigtail Type

Fiber Type For Port 3

Length

Connector

1×2

1064

S=Single

250=250um

2=HI1060

0.8=

NE=None

Stage

bare fiber

3= PM fiber,Slow axis

0.8m

FA=FC/APC

900=900um

align to Port 1

1=1m

FC=FC/UPC

loose tube

4=PM fiber, Slow axis

SA=SC/APC

align 45° to port 1

SC=SC/UPC

XX=Other
