Optical Circulator, Polarization Insensitive 1064 nM, 0.8M fiber

Features

High isolation & High Return Loss

Low insertion loss & PDL

Applications

Fiber Laser

Laboratory

Technical Paremeter

Type

Parameter

3 Port

Operating wavelength (nm)

1064

Bandwidth(nm)

±10

Isolation(dB)

≥20(Typ.25dB)

Insertion Loss (dB)

2.1(Typ 1.8)

PDL (dB)

0.2

Return loss (dB)

≥50

Cross Talk (dB)

≥45

Power handling (mW)

300

Fiber Type

HI1060

Operating temperature ()

0 ~ +70

Storage temperature ()

-40 ~ +85

Dimensions (mm)

34×8.4×8.4

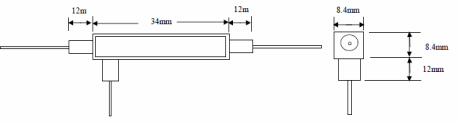

Dimensions:


Ordering Information

CIR



Type



Wavelength



Pigtail Type



Length

Fiber Type



Connector



Package

3=3

1064

250=250um bare fiber

0.8=0.8m

4=HI1060

NE=None FC=FC/UPC SC=SC/UPC FA=FC/APC SA=SC/APC ST=ST/UPC LC=LC/UPC

xx=Others

34×8.4×8.4

Port

900=900um loose

1=1m

tube

3000=3mm loose

tube
