Optical circulator – Polarisation insensitive, 3 port 1064 nm

Features

High isolation & High Return

Loss Low insertion loss & PDL

Optical Path Epoxy Free

Applications

Fiberopitc Amplifiber

CATV Fiberoptics Link

Fiberoptic Systems Testing

Fiberoptic LAN Systems

Telecommunications



Technical Paremeter

Type

Parameter

3 Port

Operating wavelength (nm)

1060

Bandwidth(nm)

±10

Isolation(dB)

≥20(Typ.25dB)

Insertion Loss (dB)

2.1(Typ 1.8)

PDL (dB)

0.2

Return loss (dB)

≥50

WDL(dB)

0.2

Cross Talk (dB)

≥45

Power handling (mW)

300

Fiber Type

HI1060 or specify

Fiber Length (m)

0.8

Operating temperature ()

0 ~ +70

Storage temperature ()

-40 ~ +85

Dimensions (mm)

34×8.4×8.4

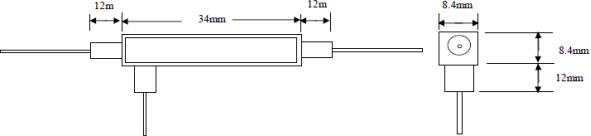

Dimensions:


Ordering Information

CIR

Type

Wavelength

Pigtail Type

Fiber Type

Length

Connector

3=3 Port

1064

250=250um bare fiber

4=HI1060

0.8= 0.8m

NE=None

900=900um loose tube

FC=FC/UPC

3000=3mm loose tube

SC=SC/UPC

FA=FC/APC

SA=SC/APC

ST=ST/UPC

LC=LC/UPC

xx=Others
