Optical Circulator – PM – 3 Port – 1064 nM
|
Features Low Insertion Loss High Extinction Ratio and High Isolation High stability and reliability |
Applications EDFA Fiber Optical Instrument Fiber Sensor Fiber Laser |
Technical Paremeter
|
Type Parameter |
Type B |
|
Operating wavelength (nm) |
1064 |
|
Bandwidth (nm) |
±5 |
|
Typ. Isolation (dB) |
30 |
|
Isolation (dB) |
≥25 |
|
Typ. Insertion Loss (dB) |
1.8 |
|
Insertion Loss (dB) |
≤2.1 |
|
Extinction Ratio (dB) |
≥20 |
|
Cross Talk (dB) |
≥50 |
|
Return loss (dB) |
≥50 |
|
Power handling (mW) |
≤300 |
|
Fiber Type |
Panda Fiber |
|
Operating temperature (℃) |
-5 ~ +50 |
|
Storage temperature (℃) |
-40 ~ +85 |
|
Dimensions (mm) |
φ5.5×L35 |

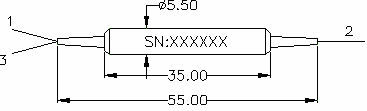

Dimensions:
Ordering Information
|
PMCIR |
Port |
Type |
Wavelength |
Axis Alignment |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
3=3 |
B |
1064 |
F=Fast |
250=250um |
5=Panda fiber |
0.8= 0.8m |
NE=None |
|
|
Port |
axis |
bare fiber |
1=1m |
FA=FC/APC |
||||
|
blocked |
900=900um |
FC=FC/UPC |
||||||
|
loose tube |
SA=SC/APC |
|||||||
|
3000=3mm |
SC=SC/UPC |
|||||||
|
loose tube |
XX=Other |
