Mini 1×8 T type Optical Switches



Description

GEZHI Photonics’ Mini 1×8 T type Mechanical Fiber Optic Switch (1×8 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

Compact design, Miniature size

Short switching time

Bi-directionalLow optical distortions

Low cross talk, Low Insertion Loss

Wide operating wavelength Range

Applications

R&D in Laboratory

System monitoring

Metropolitan Area Network

Network protection and restoration

Instrumentation, testing, and measurement

Technical Paremeter

Mini 1×8 T Type Switch

Unit

Typical

Operation Wavelength

nm

850nm or 1260~1650nm

Insertion Loss

dB

<1.0(MM), <1.2(SM)

Wavelength Dependent Loss

dB

<0.25(MM), <0.30(SM)

Polarization Dependent Loss

dB

<0.1

Return Loss

dB

MM:>35, SM: >55

Cross Talk

dB

MM:>40, SM: >55

Switching Time

ms

Typical: 4    Max:10

Repeatability

dB

<±0.02

Durability

Cycles

>10 Million

Switching Type

Latching / Non-Latching

Optical Power Handling

mW

<500mW

Operating Voltage

VDC

3V or 5V

Operating Temperature

0~+70

Storage Temperature

-40~+85

Fiber Type

/

SM/MM Fiber

Package Dimension

mm

35L x 35W x 9H

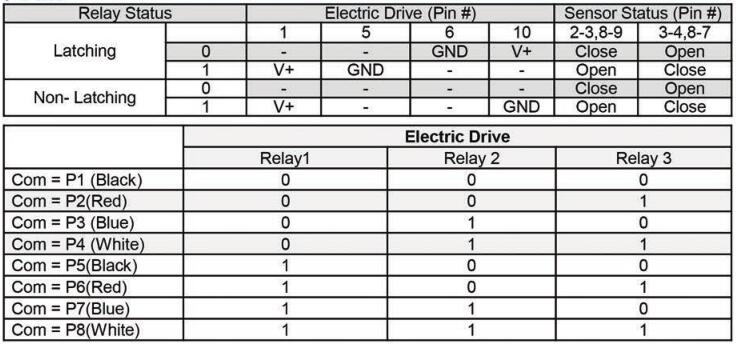

Pins

MINI 1X8 T.jpg

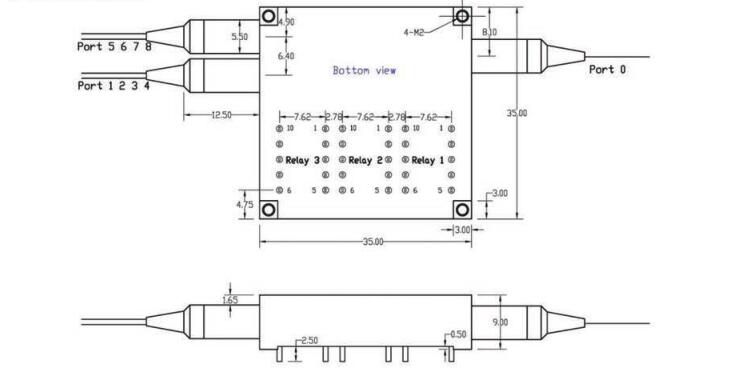

Dimensions

MINI 1X8 T SIZE.jpg

Electric

Specifications

Voltage

Current

Resistance

5V   latching

4.5~5.5 V

22.2(±10%) mA

202.5(±10% Ω

5V   non-latching

4.5~5.5 V

31(±10% mA

145(±10% Ω

3V   latching

2.7~3.3 V

33.3(±10% mA

90(±10% Ω

3V   non-latching

2.7~3.3 V

46.7(±10% mA

64.2(±10% Ω


Ordering Information

X

XX

X

X

XX

XX

X

Mode

Wavelength

Voltage Type

Control Model

Fiber Diameter

Fiber Length

Connector

S=SM 9/125

M5=MM 50/125

M6=MM 62.5/125

85=850nm

13=1310nm

15=1550nm

13/15=1310/1550nm

X=Others

3=3V

5=5V

L=Latching

N=Non- Latching

25=250um

90=900um

05=0.5m

10=1.0m

X=Others

0=None

1=FC/PC

2=FC/APC

3=SC/PC

4=SC/APC

5=ST/PC

6=ST/APC

7=LC/PC

8=LC/APC

X=Others
