High Power In Line Optical Isolator 1064nM 2 watt

Features

Low Insertion Loss & PDL

High Isolation Extinction Ratio

High stability and reliability

Applications

Fiber Laser

High Power EDFA

Fiber Optical Instrument



Technical Paremeter

Parameter

Non-PM Fiber Isolator (HPIS)

PM Fiber Isolator (HPMIS)

Center wavelength (nm)

1030,1040,1064

Bandwidth (nm)

±10

Peak isolation (dB)

30~35

30~35

Isolation at 23(dB)

≥ 25

≥ 25

Insertion Loss at 23(dB)

≤1.0(typ.0.6)

≤1.0(typ.0.6)

PDL (dB)

≤0.15

Extinction Ratio (dB)

≥20

Return loss (Input/output) (dB)

≥50/50

≥50/50



Power handling

CW (W)

1,2,3,5,10,15,20 or specify

Pulse Peak (Kw)

10 or specify

Fiber Type

HI1060 or LMA fiber

PM980 or PM LMA fiber

Operating temperature ()

-5 ~ +50

Storage temperature ()

-20 ~ +75

Package Dimension (mm)

118x37x35

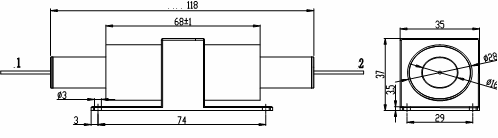

Dimensions:


Ordering Information

HPIS HPMIS

Wavelength

Working Axis

Pigtail Type

Fiber Type

Length

Power

Package

1030

F= Fast

250=250um bare

4=HI1060

0.8= 0.8m

1=1W

118x37x35

1040

axis

fiber

5=Panda

2=2W

1064

blocked

900=900um

fiber

X=Others

B= Slow

loose tube

axis

3000=3mm loose

working

tube
