Multimode Pump Bandpass Filter

Features

Low IL and High Isolation and High Return Loss

 High Power

High stability and reliability

Applications

   Fiber Laser




Technical Paremeter

Parameter

Values

Pass Wavelength Range (nm)

960~990

Reflection Wavelength Range(nm)

1020~1100

IL (dB)

0.6

Isolation (dB)

30

PDL(dB)

0.1

Return loss (Input/output) (dB)

35/35

Max Power handling (W)

10

Fiber Type

Multimode Fiber 105/125 (NA 0.15 or 0.22)

Operating temperature ()

-5 ~ +70

Storage temperature ()

-40 ~ +85

Package(mm)

φ5.5×35

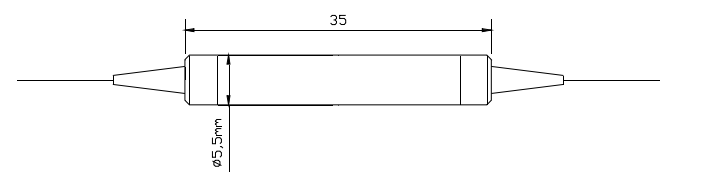

Dimensions:



Ordering Information

HPBP

Wavelength

Pigtail Type

Fiber Type

Length

Power

980T/1064R

250=250um bare fiber

0.15=105/125

0.8= 0.8m

1=1W

900=900um loose tube

NA 0.15

0.22=105/125

NA 0.22
