Fiber Patchcords – 2000 nm SC,UPC PM Polarization Maintaining

Features

Low Insertion Loss

High Extinction Ratio

High stability and reliability

Applications

Fiber Laser

Fiber Amplifier

Testing Instrument

Optic lab use



Technical Paremeter

Parameter

Value

Connector Type

FC/UPC, SC/UPC,LC/UPC ,FC/APC, SC/APC, LC/APC

Wavelength (nm)

2000



Insertion Loss (dB)

UPC Type

≤0.3

APC type

≤0.4



Return loss (dB)

UPC Type

≥50

APC type

≥60

Extinction Ratio (dB)

≥23

Fiber Type

PM1550 or

Nufern PM1950 fiber

Key Orientation

Slow Axis

Axis Alignment (deg)

±3

Operating temperature ()

-5~+70

Storage temperature ()

-40 ~ +80

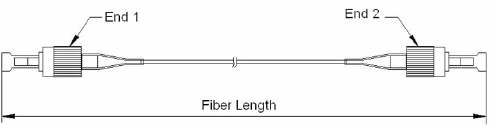

Dimensions:


Ordering Information

PMJP

Connector End1

Connector End 2

Wavelength



Pigtail Type

Fiber Type

Fiber Length

NE=None

NE=None

2000=2000

250=250um bare fiber

5=PM1550

9=Nufern PM1950

fiber

1=1m

FA=FC/APC

FA=FC/APC

900=900um loose tube

2=2m

FC=FC/UPC

FC=FC/UPC

2000=2mm loose tube

X=Other

SA=SC/APC

SA=SC/APC

3000=3mm loose tube

SC=SC/UPC

SC=SC/UPC

LC=LC/UPC

LC=LC/UPC

LA=LC/APC

LA=LC/APC

X=Other

X=Other
