Fiber Optic RGB patchcord, FA, FC, UPC, SA, SC, APC, LA, LC
|
Features Low Insertion Loss High Return Loss & High Repeatability |
Applications LAN, Data network CATV Network Telecommunication |
Technical Paremeter
|
Parameter |
Value |
|
|
Connector Type |
FC,SC, LC etc |
|
|
Operating Wavelength (nm) |
488，532，635 |
|
|
Fiber Type |
Nufern 460 HP fiber for 488 nm Nufern 460 HP Fiber for 532nm Nufern 630 HP fiber for 635 nm |
|
|
Insertion loss (dB) |
≤1.5 |
|
|
Return loss (dB) |
UPC |
≥50 |
|
APC |
≥60 |
|
|
Repeatability (dB) |
≤0.1 |
|
|
Changeability (dB) |
≤0.2 |
|
|
Operating temperature (℃) |
-40 ~ + 85 |
|

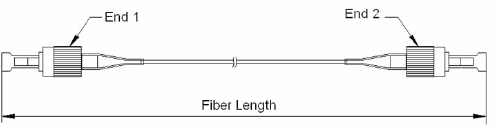

Dimensions:
Ordering Information
|
JP |
Connector (End 1) |
Connector (End2) |
Wavelengt h |
Pigtail Type |
Fiber Type |
Length |
|
NE=None |
NE=None |
488 |
250=250um bare fiber |
460HP |
1=1m |
|
|
FA=FC/APC |
FA=FC/APC |
532 |
900=900um loose tube |
630HP |
X=Specify |
|
|
FC=FC/UPC |
FC=FC/UPC |
635 |
3000=3mm loose tube |
|||
|
SA=SC/APC |
SA=SC/APC |
|||||
|
SC=SC/UPC |
SC=SC/UPC |
|||||
|
LC=LC/UPC |
LC=LC/UPC |
|||||
|
LA=LC/APC |
LA=LC/APC |
