Fiber Optic patchcord, FC ST SC LC MU – Single Mode 1310 1550
|
Features Low Insertion Loss High Return Loss & High Repeatability |
Applications LAN, Data network CATV Network Telecommunication |
Technical Paremeter
|
Parameter |
Value |
|
|
Connector Type |
FC,SC,ST, LC, MU, etc |
|
|
Operating Wavelength (nm) |
1310/1550 |
|
|
Fiber Type |
Single Mode |
|
|
SMF-28e |
||
|
Insertion loss (dB) |
≤0.25 |
|
|
Return loss (dB) |
UPC |
≥50 |
|
APC |
≥60 |
|
|
Repeatability (dB) |
≤0.1 |
|
|
Changeability (dB) |
≤0.2 |
|
|
Durability |
≥1000 |
|
|
Operating temperature (℃) |
-40 ~ + 85 |
|

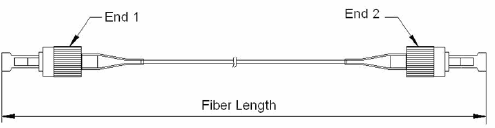

Dimensions:
Ordering Information
|
JP |
Connector (End 1) |
Connector (End2) |
Wavelengt h |
Pigtail Type |
Fiber Type |
Length |
|
NE=None |
NE=None |
1310/1550 |
250=250um bare fiber |
1=SMF-28e |
1=1m |
|
|
FA=FC/APC |
FA=FC/APC |
900T=900um tight buffer |
2=50/125 MM |
X=Specify |
||
|
FC=FC/UPC |
FC=FC/UPC |
2000C=2mm cable |
3=62.5/125 MM |
|||
|
SA=SC/APC |
SA=SC/APC |
3000C=3mm cable |
4=HI1060Flex |
|||
|
SC=SC/UPC |
SC=SC/UPC |
X=Other |
||||
|
LC=LC/UPC |
LC=LC/UPC |
|||||
|
LA=LC/APC |
LA=LC/APC |
|||||
|
MU=MU/UPC |
MU=MU/UPC |
