Fiber Optic patchcord – FC, ST, SC, LC, MU – Multi Mode
|
Features Low Insertion Loss High Return Loss & High Repeatability |
Applications LAN, Data network CATV Network Telecommunication |
Technical Paremeter
|
Parameter |
Value |
|
|
Connector Type |
FC,SC,ST, LC etc |
|
|
Operating Wavelength (nm) |
850/1310 |
|
|
Fiber Type |
50/125 MM or 62.5/125 MM or 105/125 MM or 200/220 MM |
|
|
Insertion loss (dB) |
≤0.30 |
|
|
Return loss (dB) |
UPC |
≥40 |
|
APC |
/ |
|
|
Repeatability (dB) |
≤0.1 |
|
|
Changeability (dB) |
≤0.2 |
|
|
Durability |
≥1000 |
|
|
Operating temperature (℃) |
-40 ~ + 85 |
|

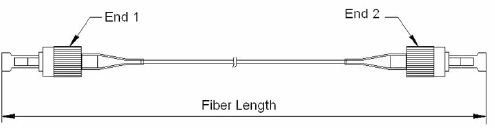

Dimensions:
Ordering Information
|
JP |
Connector (End 1) |
Connector (End2) |
Wavelengt h |
Pigtail Type |
Fiber Type |
Length |
|
NE=None |
NE=None |
850 |
250=250um bare fiber |
2=50/125 MM |
1=1m |
|
|
FA=FC/APC |
FA=FC/APC |
1310 |
900=900um loose tube |
3=62.5/125 MM |
X=Specify |
|
|
FC=FC/UPC |
FC=FC/UPC |
2000=2mm loose tube |
7=105/125 NA |
|||
|
SA=SC/APC |
SA=SC/APC |
3000=3mm loose tube |
0.15 |
|||
|
SC=SC/UPC |
SC=SC/UPC |
8=105/125 NA |
||||
|
LC=LC/UPC |
LC=LC/UPC |
0.22 |
||||
|
LA=LC/APC |
LA=LC/APC |
9=200/220 NA |
||||
|
0.22 |
