Band Pass Filter – PM – 1064 nm
|
Features Low Insertion Loss & PDL High Isolation Extinction Ratio High stability and reliability |
Applications Fiber Laser |
Technical Paremeter
|
Parameter |
Value |
|
|
Nominal Center Wavelength (nm) |
1064 |
|
|
Min. Pass bandwidth @0.5dB down(nm) |
2 |
5 |
|
Max. Stop bandwidth@25dB down(nm) |
20 |
22 |
|
Insertion Loss@1064+/-1nm(dB) |
≤1.2 |
— |
|
Insertion Loss@1064+/-2.5nm(dB) |
— |
≤0.8 |
|
Isolation @1000~1055nm&1075~1100(dB) |
≥25 |
|
|
Isolation @1000~1050nm&1080~1100(dB) |
— |
≥30 |
|
Extinction Ratio (dB) |
≥20 |
|
|
Return loss (dB) |
≥50 |
|
|
Power handling (mW) |
≤300 |
|
|
Operating temperature (℃) |
-5 ~ +50 |
|
|
Storage temperature (℃) |
-40 ~ +85 |
|
|
Dimensions (mm) |
φ5.5×L35 |
|

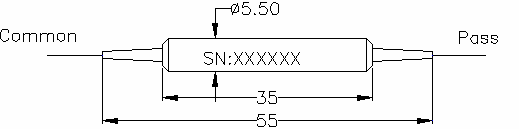

Dimensions:
Ordering Information
|
PMBF |
Waveleng th |
Passband Width |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1064 |
2=2nm |
250=250um |
5=Panda |
0.8= 0.8m |
NE=None |
|
|
5=5nm |
bare fiber |
fiber |
X=Specify |
FA=FC/APC |
||
|
900=900um |
FC=FC/UPC |
|||||
|
loose tube |
SA=SC/APC |
|||||
|
SC=SC/UPC |
||||||
|
XX=Other |
