Band Pass Filter 1064nm 5nM Pass Band

Features

Low Insertion Loss

High Isolation

High Stability and reliability

Applications

Multi-mode fiber communication systems LAN



Technical Paremeter

Parameter

Value

Nominal Center Wavelength (nm)

1064

1064

Min. Pass bandwidth @0.5dB down(nm)

2

5

Max. Stop bandwidth@25dB down(nm)

20

22

Insertion Loss@1064+/-1nm(dB)

≤1.2

Insertion Loss@1064+/-2.5nm(dB)

≤0.8

Isolation @1000~1055nm&1075~1100(dB)

25

Isolation @1000~1050nm&1080~1100(dB)

30

Max. PDL @23(dB)

0.1

Return loss (dB)

≥50

Power handling (mW)

≤300

Operating temperature ()

-5 ~ +50

Storage temperature ()

-45 ~ +85

Fiber type

HI1060

Dimensions (mm)

φ5.5×L35

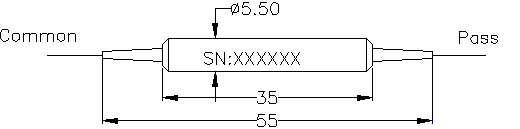

Dimensions:


Ordering Information

BP



Wavelength

Passband Bandwidth



Pigtail Type



Fiber Type



Length



Connector

1064

2=2nm

250=250um

4=HI1060

1= 1m

NE=None

5=5nm

bare fiber

X=Specify

FA=FC/APC

900=900um

FC=FC/UPC

loose

SA=SC/APC

SC=SC/UPC

LC=LC/UPC

LA=LC/APC

XX=Other
