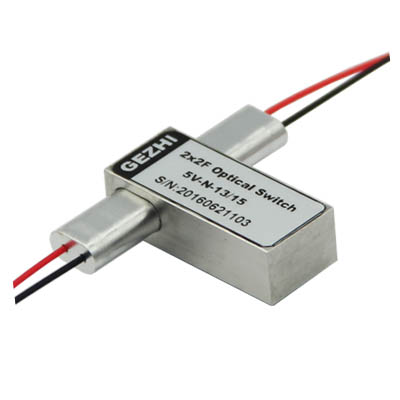

  2×2 Full Optical Mechanical Optical Switches



Description

The 2×2 Full Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers.  This is achieved using a opto-mechanical configuration and activated  via an electrical control signal. The switch has integrated electrical  position sensors.Based on thin film filter technology that  provides a robust method of altering the light patch, this series of  products has a drastically simplified platform configuration offering  high reliability and low production cost. This novel design  significantly reduces moving part position sensitivity, offering  unprecedented high stability as well as an unmatched low cost.

Features

Short  switching timeLow cross talk

Low Insertion Loss

Wide operating  wavelength

RangeSeam-seal package

Highly Stable & Reliable

Epoxy-free  on Optical Path

Single mode or Multimode optional

Applications

Network  switching

Fiber sensor

Channel blocking

System monitoring Channel  Blocking

Module and System Integration

Metropolitan Area Network



Technical Paremeter

Parameters

Unit

GZ-FSW-2×2 Full

Wavelength Range

nm

1260~1650

Operating Wavelength

nm

1310/1550

Insertion Loss

dB

Typ:0.8  Max:1.0

Return Loss

dB

≥50

Crosstalk

dB

≥55

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power Supply

v

3.0 or 5.0

Lifetime

times

≥107

Switch Time

ms

≤8

Transmission Power

mW

≤500

Operatin Temperature

-5~+70

Storage Temperature

-40~+85

Weight

g

16

Dimension

mm

(L)28.0×(W)12.0×(H)8.2    Customization is available



Pins

Type

Pin

          Electric Drive

Status   sensor

2×2

channel

1

5

6

10

2-3

3-4

7-8

8-9

Latching

P1-P3 P2-P4

V+

GND

Open

Close

Close

Open

P1-P4 P2-P3

GND

V+

Close

Open

Open

Close

Non-latching

P1-P3 P2-P4

V+

GND

Open

Close

Close

Open

P1-P4 P2-P3

Close

Open

Open

Close

Optical Route

Status One

Status Two



Electric

Specifications

Voltage

Current

Resistance

5V   Latching

4.5~5.5

36~44mA

125Ω

5V   Non-latching

4.5~5.5

26~32mA

175Ω

3V   Latching

2.7~3.3

54~66mA

50Ω

3V   Non-latching

2.7~3.3

39~47mA

70Ω

Mechanical Drawing


Ordering Information

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM

M=MM

85=850nm

13/15=1310/1550nm

X=Others

3=3V

5=5V

L=Latching

N=Non- Latching

5=50/125

6=62.5/125

9=9/125

X=Others

25=250um

90=900um

20=2.0mm

30=3.0mm

X=Others

1=1m

2=1.5m

X=Others

00=None

FP=FC/PC

FA=FC/APC

SP=SC/PC

SA=SC/APC

STP=ST/PC

STA=ST/APC

LP=LC/PC

LA=LP/APC

X=Others
