1×2 Filter WDM – 980 1064 1480 1550 980 1064
|
Features Low Insertion Loss High Isolation High Stability and reliability |
Applications Fiber Amplifer Fiber Laser |
Technical Paremeter
|
Type Parameter |
1480/1550 |
980/1064 |
980/1550 |
1064/1030 |
|
Pass wavelength (nm) |
1530-1580 (or 1440-1490) |
960-990 (or 1020-1080) |
1520-1600 |
1064+/-2.5 |
|
Reflection wavelength (nm) |
1440-1490 (or 1530- 1580) |
1020-1080 (or 960-990) |
965-1000 |
1030+/-5 |
|
Pass insertion loss (dB) |
≤0.6 |
≤0.8 |
≤0.8 |
≤0.8 |
|
Reflection insertion loss (dB) |
≤0.5 |
≤0.5 |
≤0.6 |
≤0.5 |
|
Pass channel isolation (dB) |
≥30 |
≥25 |
≥30 |
≥25 |
|
Reflection isolation (dB) |
≥12 |
≥13 |
≥18 |
≥13 |
|
Channel flatness (dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
|
Directivity (dB) |
≥55 |
|||
|
Return loss (dB) |
≥50 |
|||
|
PDL (dB) |
≤0.1 |
|||
|
Wavelength thermal stability (nm/℃) |
≤0.003 |
|||
|
Insertion loss thermal stability (dB/℃) |
≤0.005 |
|||
|
Power handling (mW) |
≤300 |
|||
|
Operating temperature (℃) |
0 ~ +70 |
|||
|
Storage temperature (℃) |
-40 ~ +85 |
|||
|
Dimensions (mm) |
φ5.5×L34 |
|||

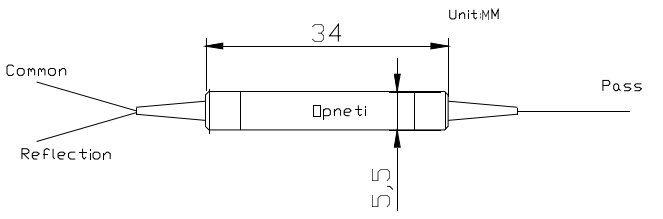

Dimensions:
Ordering Information
|
FWDM |
Port Type |
Wavelength |
Pigtail Type |
Fiber Type |
Length |
Connector |
|
1×1 |
1064T/1030R |
250=250um bare |
1=SMF-28e |
1= 1m |
NC=None |
|
|
1×2 |
980T/1064R |
fiber |
4=HI1060 |
FA=FC/APC |
||
|
980R/1064T |
900=900um loose |
FC=FC/UPC |
||||
|
1550T/980R |
tube |
SA=SC/APC |
||||
|
1480T/1550R |
3000=3mm loose |
SC=SC/UPC |
||||
|
1550T/1480R |
tube |
LC=LC/UPC |
||||
|
XX=Other |
