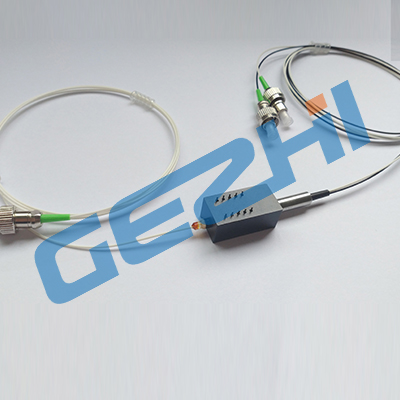

1×1, 1×2 High Power fiberoptic Switch
Description
GEZHI Photonics High Power 1×1, 1×2 fiber optical switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using patented non-mechanical configurations and activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. The all High Power fiberoptic switch features low insertion loss, high extinction ratio, high channel isolation, and extremely high reliability and repeatability. It is designed to meet the most demanding switching requirements of continuous operation without failure, longevity, operation under shock/vibration environment and large temperature variations, and fast response time. The switch also has build-in Circulator and isolator functions. Electronic driver is available for this series of switches.
Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features Low Insertion Loss High Crosstalk Compact package |
Applications Configurable OADM Optical Cross & Connection system Network Monitor Optical Fiber Ring Protection |
Technical Paremeter
|
Parameter |
Value |
||
|
Type |
1×1, 1×2 |
||
|
Wavelength (nm) |
1310 +/30 or 1550+/-30 |
1310+/-30&1550+/-30 |
|
|
Insertion Loss (dB) |
≤0.7(Typ 0.6) |
≤0.9(Typ 0.7) |
|
|
Cross Talk (dB) |
≥55 |
≥55 |
|
|
Return Loss (dB) |
≥55 |
≥55 |
|
|
Repeatability (dB) |
≤±0.05 |
||
|
Switch Time (ms) |
10 |
||
|
Lifetime (cycle) |
>1,000,000 |
||
|
Switch mode |
Latching or Non-latching |
||
|
Operating Temperature (°C) |
-5 ~ +70 |
||
|
Storage Temperature (°C) |
-40 ~ +85 |
||
|
Drive Voltage (V) |
5 ±0.5 DC or 5V Pulse |
||
|
Work Current (mA) |
＜50 |
||
|
Power Handing(W) |
<10 |
||
|
Fiber Type |
SMF-28e |
||
|
Fiber length (m) |
Read order information |
||
|
Dimension (LxMxH) (mm) |
(L)26.5×(W)13.4×(H)11 |
||
Pins
|
Electrical Drive |
Status Sensor |
|||||||
|
Optical Path |
||||||||
|
Pin1 |
Pin10 |
Pin5 |
Pin6 |
Pin2-3 |
Pin3-4 |
Pin7-8 |
Pin8-9 |
|
|
1-2 |
+V Pulse |
GND |
N/A |
N/A |
open |
close |
close |
open |
|
1-3 |
GND |
+V Pulse |
N/A |
N/A |
close |
open |
open |
close |

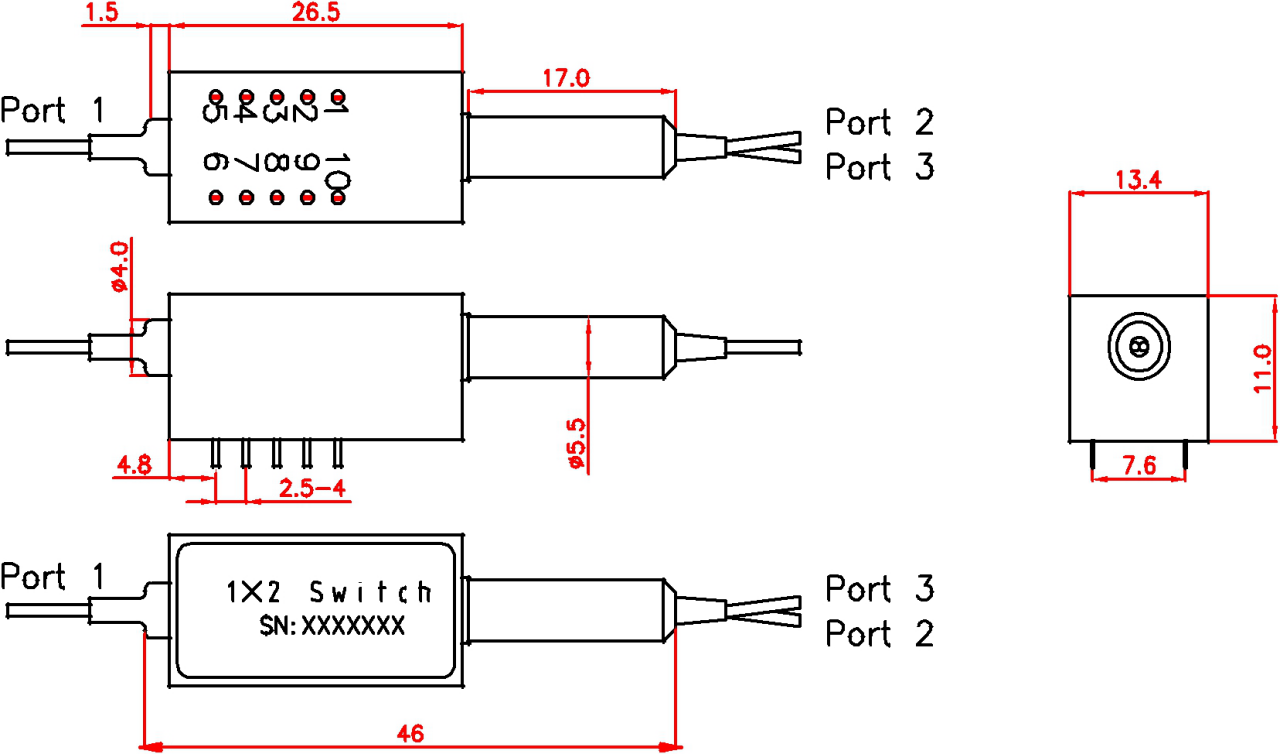

Package Dimension
Ordering Information
|
HOS |
Wavelength |
Type |
Power |
Mode |
Pigtail Type |
Length |
Connector |
|
W |
Handing |
||||||
|
1310=1310nm |
1=1×1 |
0A=10W |
L=Latching |
1=250um bare |
H=0.5m |
0=None |
|
|
fiber |
|||||||
|
1550=1550nm |
2=1X2 |
N=Non-Latching |
2=900um loose |
8=0.8m |
1=FC/UPC |
||
|
tube |
|||||||
|
3155=1310/1550nm |
4=2mm cable |
1=1.0m |
2=FC/APC |
||||
|
5=1.5m |
3=SC/APC |
||||||
|
2=2m |
4=SC/UPC |
||||||
|
6=LC/PC |
|||||||
