1310_1550nm Fused WDM & High Isolation Fused WDM Coupler
|
Features High Isolation Low Insertion Loss High Reliability |
Applications CATV System Access Network |
Technical Paremeter
|
Type |
WDM |
HWDM |
SWDM |
||||
|
Operating wavelength (nm) |
1310 and 1550 |
||||||
|
Operating bandwidth (nm) |
±15 |
||||||
|
Grade |
P |
A |
P |
A |
P |
A |
|
|
Insertion loss (dB) |
≤0.2 |
≤0.3 |
≤0.5 |
≤0.6 |
≤0.5 |
≤0.6 |
|
|
Isolation (dB) |
≥17 |
≥16 |
≥32 |
≥30 |
≥40 |
≥38 |
|
|
PDL (dB) |
≤0.05 |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.1 |
≤0.15 |
|
|
Directivity (dB) |
≥55 |
||||||
|
Operating temperature (℃) |
-40 ~ +85 |
||||||
|
Fiber |
SMF-28e |
||||||
|
Configuration |
1×2 or 2×2 |
||||||
|
Pigtail type |
250um bare fiber |
900μm loose tube |
2mm/3mm loose tube |
||||
|
Package Size |
WDM |
Ф3.0×54 |
Ф3.0×54 |
90x20x9.5 |
|||
|
HWDM |
— |
100x80x10 |
100x80x10 |
||||
|
SWDM |
— |
100x80x10 |
100x80x10 |
||||

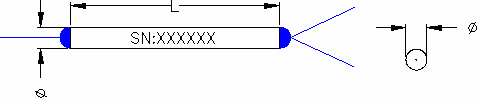

Dimensions:
Ordering Information
|
WDM HWDM SWDM |
Grade |
Port |
Wavelength |
Pigtail |
Fiber |
Length |
Connector |
Package |
|
A=A grade |
1×2 |
1310/1550 |
0=250um bare fiber |
0=SMF-28e |
1=1m |
00=none |
3×54 |
|
|
P=P grade |
2×2 |
1=900um loose tube |
S=Specify |
FC,SC,LC,ST |
||||
|
2=2mm loose tube |
MU/UPC,APC |
100x80x10 |
||||||
|
3=3mm loose |
||||||||
|
tube |
